Product Features:
● Combined refrigerative dehumidification with desiccant?rotor.
● Refrigerative?dehumidification is mainly used in summer, supplemented by desiccant?rotor, refrigerative?dehumidification and desiccant?rotor?in transition?season, and desiccant?rotor?in winter.
● The direct expansion refrigeration unit adopts?imported screw compressor.
● Inlet air temperature -5~40℃, relative humidity 50~99﹪RH.
● Outlet air temperature 20~32℃, relative humidity ≤45﹪RH.
● Four working states are optional: full?refrigeration, refrigerative?dehumidification and desiccant?rotor, rotor and rotor & heating.
● PLC automatic program operation to meet the operation requirements of various working conditions.
Product Applications:
All-season all-climate special painting operations in temporary locations
Technical parameters reference:
|
CLY-Series portable Four-Season dehumidifier?parameters |
||||
|
Project/Model |
ZCLY-6000 |
ZCLY-10000 |
ZCLY-15000 |
ZCLY-18000 |
|
Process air volume |
6000 |
10000 |
12000 |
18000 |
|
Compressor power kw |
30 |
50 |
70 |
90 |
|
Air supply fan power kw |
7.5 |
11 |
18.5 |
22 |
|
Reactivatio?heating power?kw |
60 |
99 |
120 |
180 |
|
Cooling capacity ?????kcal/h |
9×104 |
13×104 |
22×104 |
26×104 |
|
Total power kw |
120 |
175 |
288 |
370 |
|
Dimension(L×W×H)mm |
4000*2000*28000 |
4270×2240×3100 |
5100×2240×3100 |
6500×2240×3100 |
|
Inlet air parameters |
T:5-40℃ RH :50-99% |
|||
|
Supply air prarmeters |
T:20-32℃ RH≤45% |
|||
|
Residual pressure of air supply |
>1000Pa |
|||
|
Master Control Program |
Full cooling, cooling with rotor dehumidification, rotor dehumidification with thermal make-up |
|||
|
Power supply |
Three-phase, 380V, 50HZ |
|||

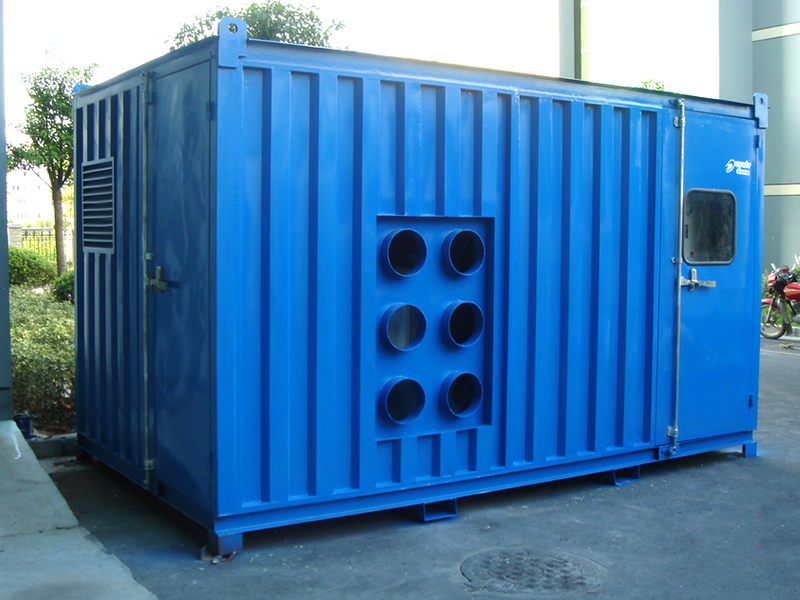

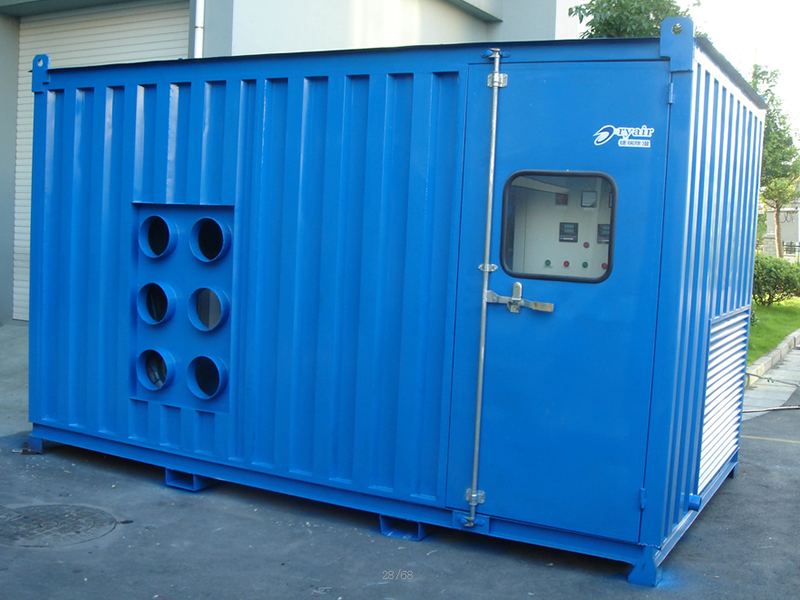

ZCLY Series portable Four-Season dehumidifiers processed air can reach required target of 20-32 degrees and less than or equal to 45% relative humidity, while ambient conditions are -5 -40 degrees and 50-99% relative humidity before processing. The condensers of the units are air-cooled copper tubing with aluminum plate; the evaporator is direct copper tube with aluminum plate. The four operating status’ available to customers are General Refrigerating, Combination Drying of the Rotor and Wet Cooling, General Drying of the Rotor, and Drying of the Rotor and Heating.?
ZCLY-Series Dehumidifiers use automated PLC programming operation meeting every status request.
